When a garage door cable snaps, the door stops working — and forcing it open can cause serious damage or injury. At CallOrange Garage Door Repair, we’ve handled hundreds of broken cable calls across Mesa, AZ, and we know exactly what needs to happen next. This guide walks you through what a snapped cable means, why it happens, what risks to avoid, and how our team restores your door safely. If your cable just broke, contact us now — we serve Mesa and the surrounding East Valley with trained technicians ready to help.

What a Garage Door Cable Actually Does

Most homeowners don’t think about their garage door cables until one of them fails. These steel lift cables run along the sides of the door, connecting the bottom brackets to the cable drums mounted on the torsion bar above. When the spring system winds or unwinds, the cables guide the door’s movement up and down along the tracks. Without them, the door can’t travel safely — and in some cases, it can’t travel at all.

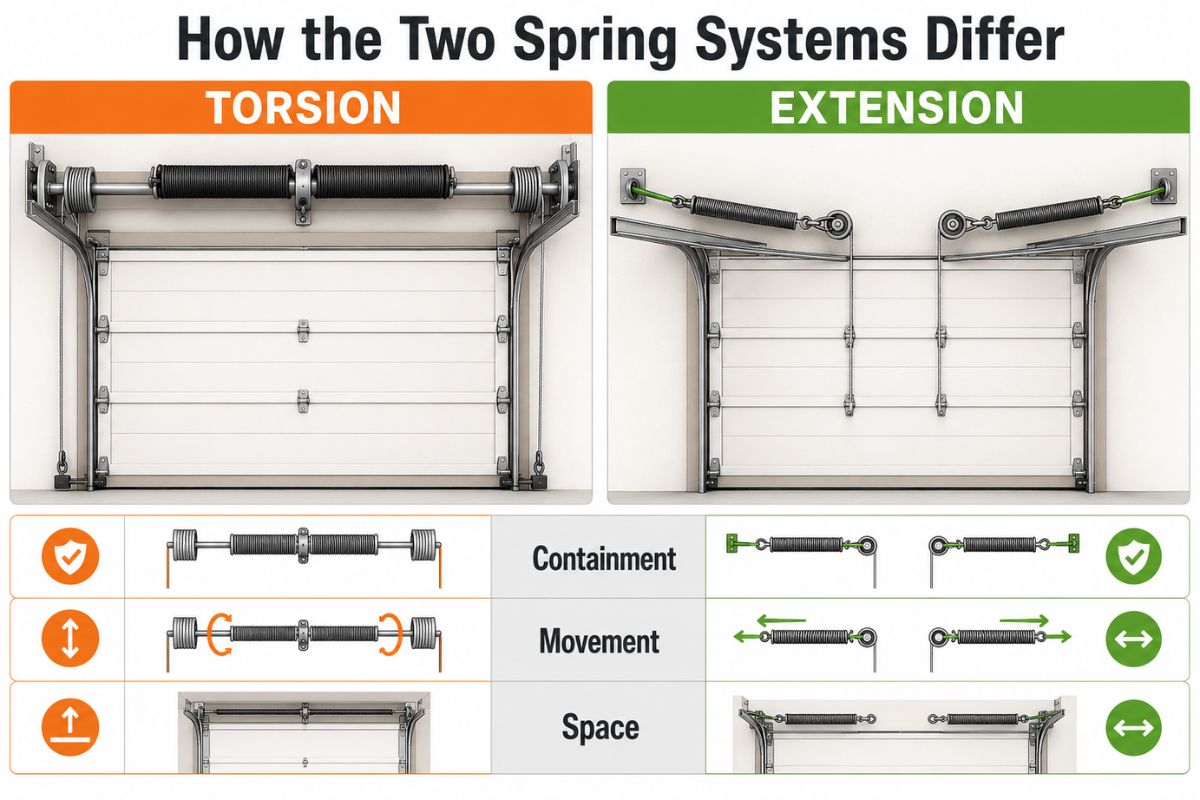

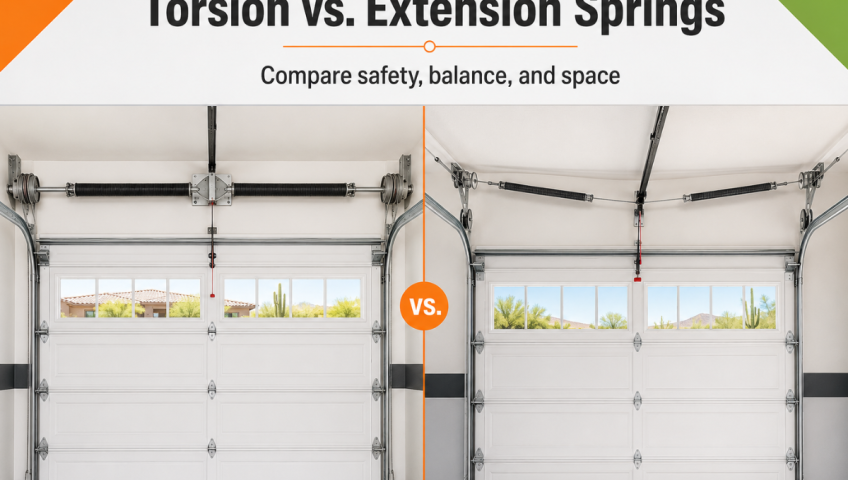

There are two main types of cable systems we work on at CallOrange Garage Door Repair: torsion cable systems, which use a horizontal bar and drums above the door opening, and extension spring cable systems, which run along the horizontal tracks on each side. Both serve the same purpose — distributing the load and guiding movement — but they require different repair approaches. Our technicians are trained and certified on both.

In Mesa’s climate, cables face added stress from intense heat cycles, UV exposure, and dust infiltration into the cable drum grooves. A cable that looks fine in March may be significantly weakened by August. That’s one reason we recommend annual inspections through our garage door maintenance program — we catch cable wear before it becomes a failure.

Garage Door Cable Failure: Causes, Signs & What We Do

Why Garage Door Cables Snap — Common Causes We See in Mesa

Understanding why cables fail helps you prevent the next break. Based on our repair history across Mesa garage door repair calls, here are the most common causes we diagnose:

Worn or Corroded Cable Strands

Steel cables are made of dozens of tightly wound wire strands. Over time — especially in outdoor or semi-exposed garages — those strands fray, rust, or snap one at a time until the cable can no longer hold tension. By the time the cable fully breaks, most of the strands were already compromised. This is why we always inspect cables during any spring repair or service call — a weak cable next to a healthy spring is still a failure waiting to happen.

Improper Spring Tension

Cables and springs work as a system. If the torsion or extension spring is over-tensioned or improperly adjusted, the cable bears an uneven load and breaks prematurely. This is one of the most common consequences of DIY spring adjustments — the cable snaps days or weeks later and homeowners don’t connect the two events. We always evaluate spring balance when performing garage door cable repair.

Cable Coming Off the Drum

If a cable slips out of the drum groove — often caused by a door being forced manually during a power outage — the cable coils unevenly, creates a bind, and snaps under load. We see this frequently after monsoon storms in Mesa when residents lose power and manually disengage the door without following proper release procedures. Our off-track repair service addresses both the cable and drum alignment together.

Bottom Bracket Failure

The cable attaches to a bracket at the bottom corner of the door. When that bracket bends, cracks, or pulls away from the door panel, the cable tension releases suddenly — sometimes violently. We always inspect the bottom brackets during our garage door repair service calls and replace them when we find stress fractures or deformation.

Simple Age and Fatigue

Most residential garage door cables are rated for 10,000 to 15,000 cycles. One cycle equals one open and one close. For a household using the garage door four times a day, that’s roughly 7–10 years of lifespan. Cables that have never been replaced on older doors are statistically likely to fail. Our team documents cable age during all tune-up visits so you always know where you stand.

The Risks of Ignoring a Snapped Cable

A garage door with one working cable and one broken cable is dangerous. The door becomes unbalanced — it may drop suddenly on the working-cable side, bend panels, jump the tracks, or damage the opener carriage. In serious cases, a door under spring tension with a failed cable can slam down without warning, posing a real safety hazard to anyone underneath it.

We’ve responded to Mesa calls where homeowners tried to operate a door with a broken cable for days before calling us. In several of those cases, we ended up replacing panels, tracks, and rollers that would have been fine if the door had simply been left alone after the cable snapped. If your cable has broken, leave the door in the position it stopped — don’t force it up or down — and call our team at CallOrange Garage Door Repair to assess the situation safely.

Our technicians carry full personal protective equipment and follow DASMA safety standards on every cable and spring repair. We never work on a loaded spring system without first verifying that both cables and drums are properly secured — it’s a non-negotiable part of our process.

Our Garage Door Cable Repair Process — What We Do Step by Step

When you call us for garage door cable repair in Mesa, here’s exactly what happens:

Step 1: Safety Assessment

Before touching anything, our technician evaluates the door’s current position, spring tension state, and cable drum condition. If the door is partially open under spring tension, we take steps to safely stabilize it before beginning any work. We never skip this step — even on calls that seem straightforward.

Step 2: Releasing Spring Tension

Using calibrated winding bars, our certified technician carefully releases tension from the torsion spring. This is the most dangerous step in the entire repair — it’s also the step that injures the most DIY homeowners every year. Our team has completed formal training on spring tension management and carries the correct tools for every system type. If you’re researching whether to attempt this yourself, our honest advice is: don’t. The spring stores enough energy to cause serious injury.

Step 3: Removing and Replacing the Cable

We remove the broken cable from both the drum and the bottom bracket, then install a new cable matched to your door’s weight and height specifications. We use commercial-grade galvanized steel cables — not economy replacements — because in Mesa’s heat and dust, cable quality directly affects lifespan. Both cables are replaced simultaneously, even if only one broke. Running a new cable alongside an old, fatigued cable is a shortcut we don’t take.

Step 4: Drum Inspection and Realignment

We inspect both cable drums for groove wear, cracks, and set screw integrity. A worn drum groove will shred a new cable in weeks. If the drum shows wear, we replace it. Then we wind and set the cable in the correct groove before reloading spring tension.

Step 5: Spring Tension Recalibration

After the cables are set, we recalibrate spring tension to match your door’s weight. We test door balance by disconnecting the opener and manually raising the door to the halfway point — a properly balanced door should hold its position without drifting up or down. If it drifts, we adjust until it holds. This final balance test is a critical quality step we perform on every spring and cable repair.

Step 6: Full System Test

We reconnect the opener, run the door through five full cycles, verify the auto-reverse safety feature, and check for any abnormal sounds or hesitation. Before we leave, we document the repair and provide a written summary including cable gauge, drum condition, and spring tension setting. Transparency is part of how we operate at CallOrange Garage Door Repair.

Cable Repair vs. Cable Replacement — What’s the Difference?

We get this question often. In almost all cases, the correct answer is full replacement — not repair. A cable that has snapped cannot be spliced or re-welded. It must be replaced as a complete unit. The only “repair” that’s ever appropriate is correcting the cause of the failure — like realigning a drum or adjusting spring tension — not patching the cable itself.

When we perform a cable replacement, we always replace both sides. This isn’t upselling — it’s engineering logic. Both cables were installed at the same time, have the same number of cycles on them, and have been under the same load. If one snapped, the other is not far behind. Replacing only the broken one and leaving the fatigued one in place is a short-term fix that leads to another service call within months.

If your door has other aging components — worn rollers, cracked hinges, or an opener that’s struggling — we’ll note those in our report and discuss options with you. We don’t pressure upgrades, but we do believe in giving you complete information about your system’s condition. Explore our full range of garage door services to see everything we handle.

How Long Does Garage Door Cable Repair Take in Mesa?

For a standard residential torsion cable replacement with no additional complications, our technicians typically complete the full job — including safety assessment, cable replacement, drum inspection, and spring recalibration — in 60 to 90 minutes. Extension spring cable systems may take slightly longer depending on the configuration.

If we find related damage — a bent track, a cracked bottom bracket, or a drum that needs replacement — we’ll let you know on-site and discuss whether to address it the same day. We carry a wide inventory of cable gauges, drum sizes, and hardware in our service vehicles, which means we rarely need to schedule a return visit for parts.

We serve Mesa, Gilbert, Chandler, Tempe, Scottsdale, and surrounding East Valley communities. Check our service area page to confirm we cover your neighborhood, then schedule your cable repair appointment online or by phone.

What Our Mesa Customers Say About Our Cable Repairs

Our reputation in Mesa is built on consistent, honest work. We’ve earned a strong rating across Google reviews from homeowners and property managers who’ve trusted us with cable repairs, spring replacements, and complete door installations. A few things our customers mention consistently: our technicians arrive prepared, explain the problem clearly before starting, and don’t push unnecessary add-ons.

We’re proud of that reputation and we work to maintain it on every call. You can read our verified reviews and get directions on our Google Business listing, where you’ll also find our service hours and contact information. Local trust matters to us — we’re a Mesa-based operation, not a national franchise, and every technician who shows up at your home is part of our trained team.

If you’re comparing options for your garage door cable repair, we encourage you to read our reviews, check our credentials, and compare our pricing transparently. We offer written estimates before starting any work — no surprises on the final invoice. You can also learn more about who we are and what sets our service approach apart.

When Your Cable Snaps, the Next Step Matters More Than the Break

A snapped garage door cable is frustrating, but it’s a solvable problem — when it’s handled by trained technicians who understand the full system. At CallOrange Garage Door Repair, our Mesa team approaches every garage door cable repair with the same precision we bring to a complete door replacement or a routine tune-up. We don’t cut corners on materials, we don’t skip the balance test, and we don’t leave until the system is working the way it should.

If you haven’t already, take a look at our articles on garage door maintenance best practices — understanding your door’s full system is the best way to prevent the next emergency call.

Call or message CallOrange Garage Door Repair today for professional garage door cable repair in Mesa, AZ. Our technicians are trained, our pricing is transparent, and our work is backed by a service guarantee. Book your repair appointment here — or find us, read our reviews, and get directions through our Google Maps listing. We’re here when you need us.
